GUYUTING USB3 2 GEN2X2 M 2 NVME SSD Enclosure RAID Modes For High Speed Data Backup And Recovery

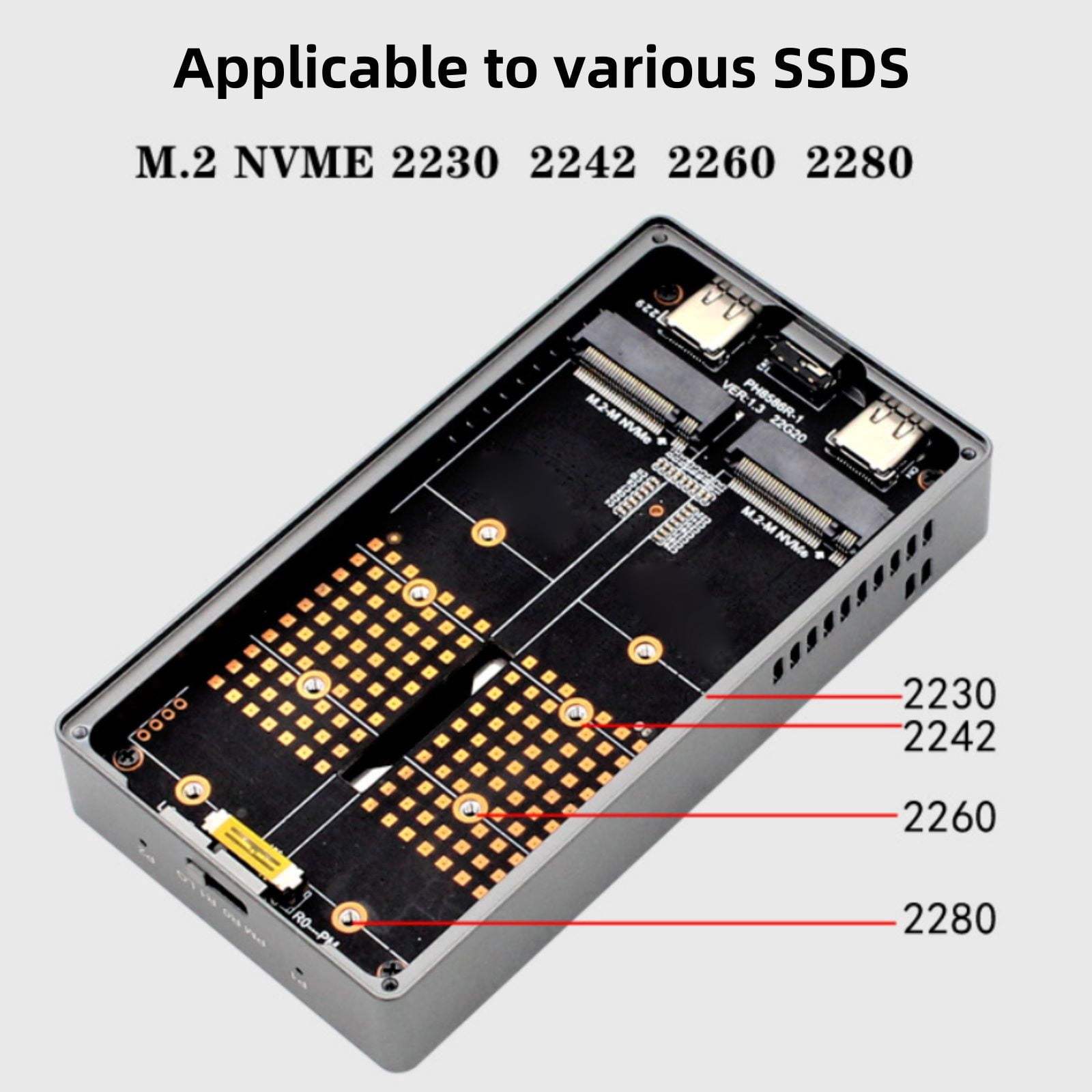

Specifications:<br>Material: Aluminium alloy<br>Size: 106*57*17mm / 4.17*2.24*0.67in<br>Color: Grey<br>Main Control: JMS586R<br>Supported Capacity: 4TB<br>Interface: TYPE-C<br>Transmission Rate: 20 Gbps (USB3.2 GEN2X2)<br>Hard Drive Compatibility: M.2 NVME SSD (2230, 2242, 2260, 2280)<br>RAID Mode: 4 (PM, R0, R1, LG)<br><br>RAID mode introduction:<br>PM: Port Multiplier port doubling (2 SSDs are independent disks)<br>R0: RAID0 High Performance Mode (Combines 2 SSDs into One Disk) – RAID0 mode in which one of the hard drives is damaged will lose all data; RAID0 capacity: The minimum disk capacity multiplied by the number of disks<br>R1: RAID1 data high-security mode - the same data is stored in 2 disks at the same time; One of the disks is corrupted and the data still exists on the other disk; After the damaged disk is replaced, the device automatically performs RAID1 reorganization, and the capacity of the new disk must be greater than or equal to the capacity of the original disk; Do not perform data read and write operations during reorganization. RAID1 Capacity: Displays the minimum disk capacity.<br>LG: LARGE Capacity Max Mode – If one of the hard drives is damaged, all data will be lost. Capacity: The total capacity of the two disks after they are added.<br><br>Package Included:<br>1 x SSD Case<br>1 x Type-C to Type-C Cable<br>2 x Studs<br>2 x Screws<br>1 x Screwdriver
